$2,099.00
Plus Shipping
Product Specifications
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 32' |
| Seat Width | 16" |
| Seat Depth | 16.36" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, Non-Folded | 23" |
| Unit Footprint, Folded | 13" |
| Call Stations Included | 2 Wireless |

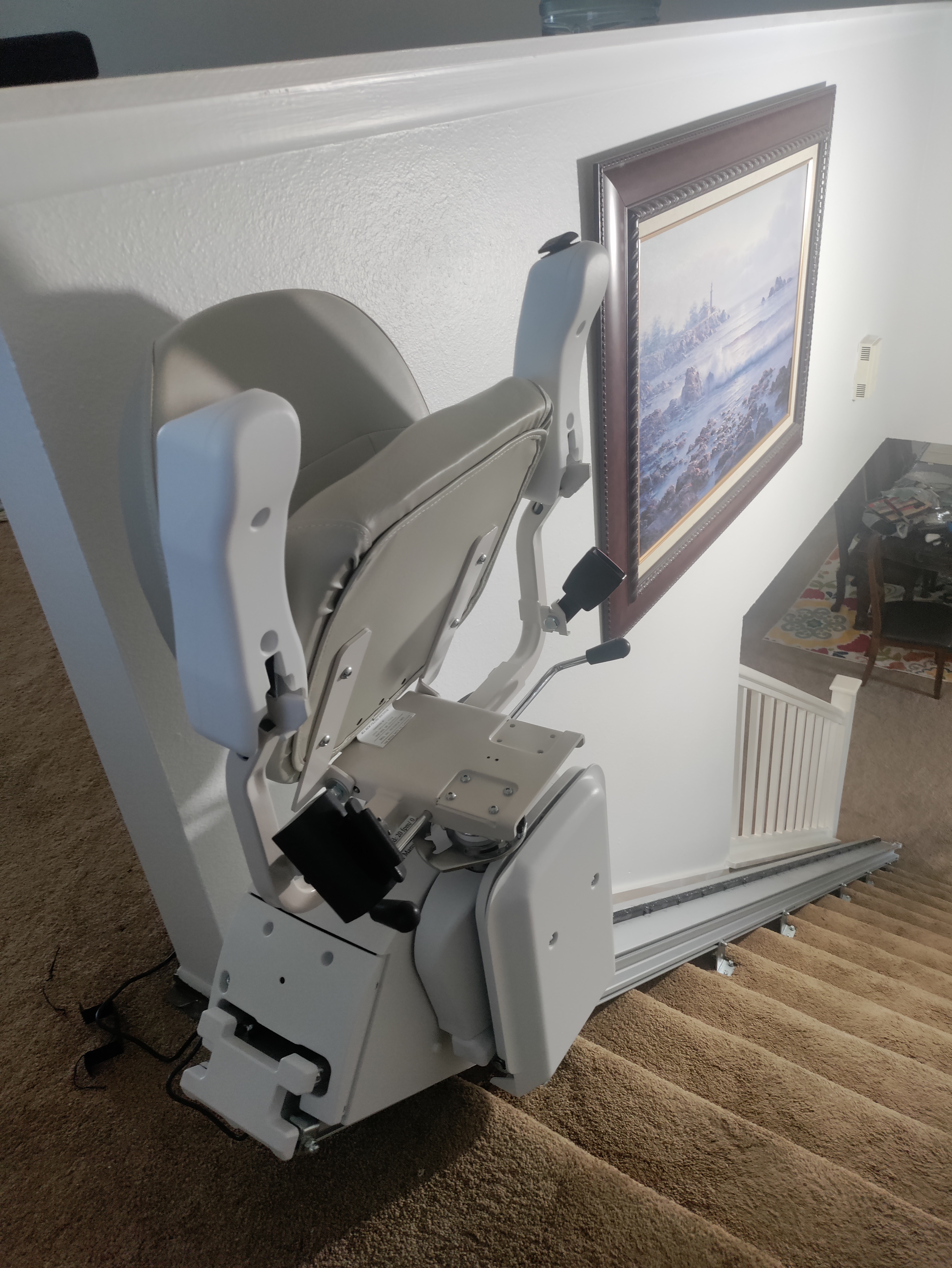

| Swivel Seat Rotation | 90 Degrees at top landing |
| Seat Width, Max | 20" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 55° |
| Digital Diagnostics Display | Yes |
| Key Lock | Yes |

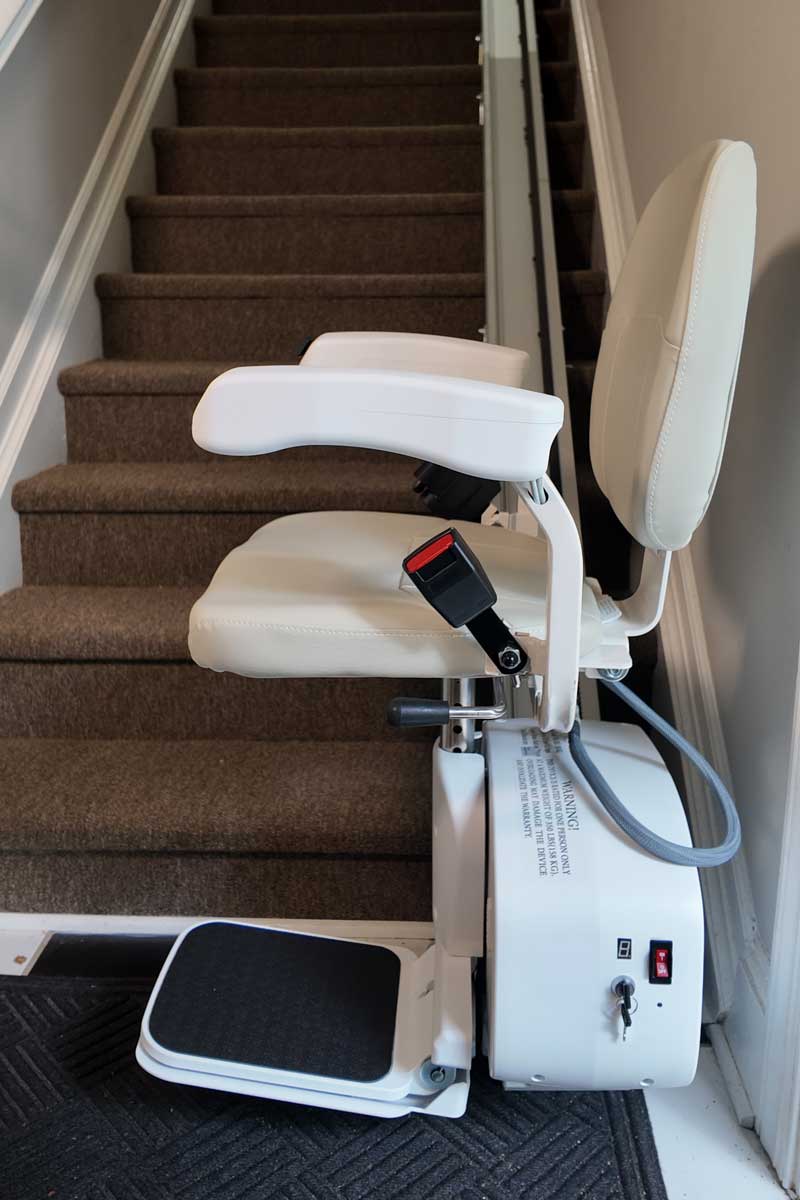

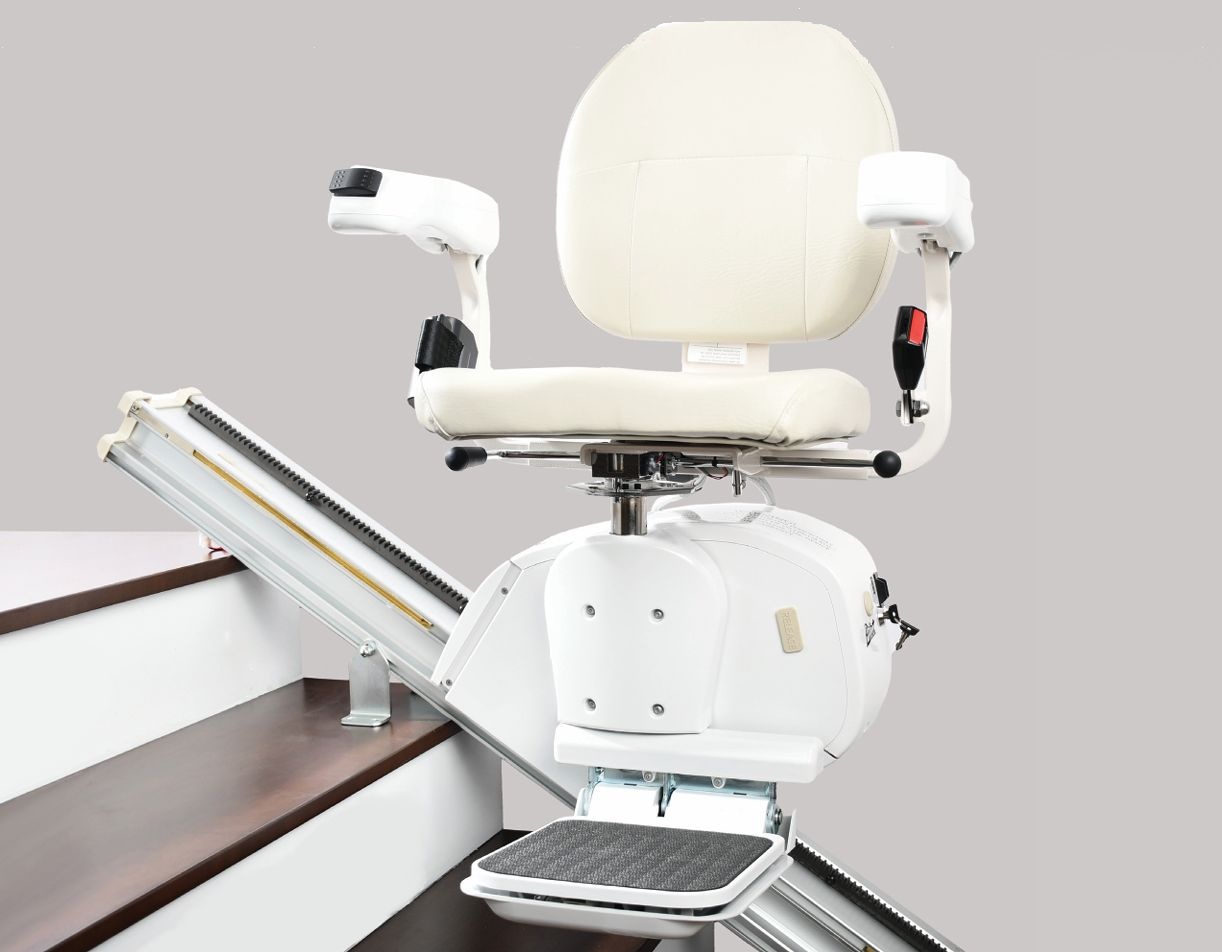

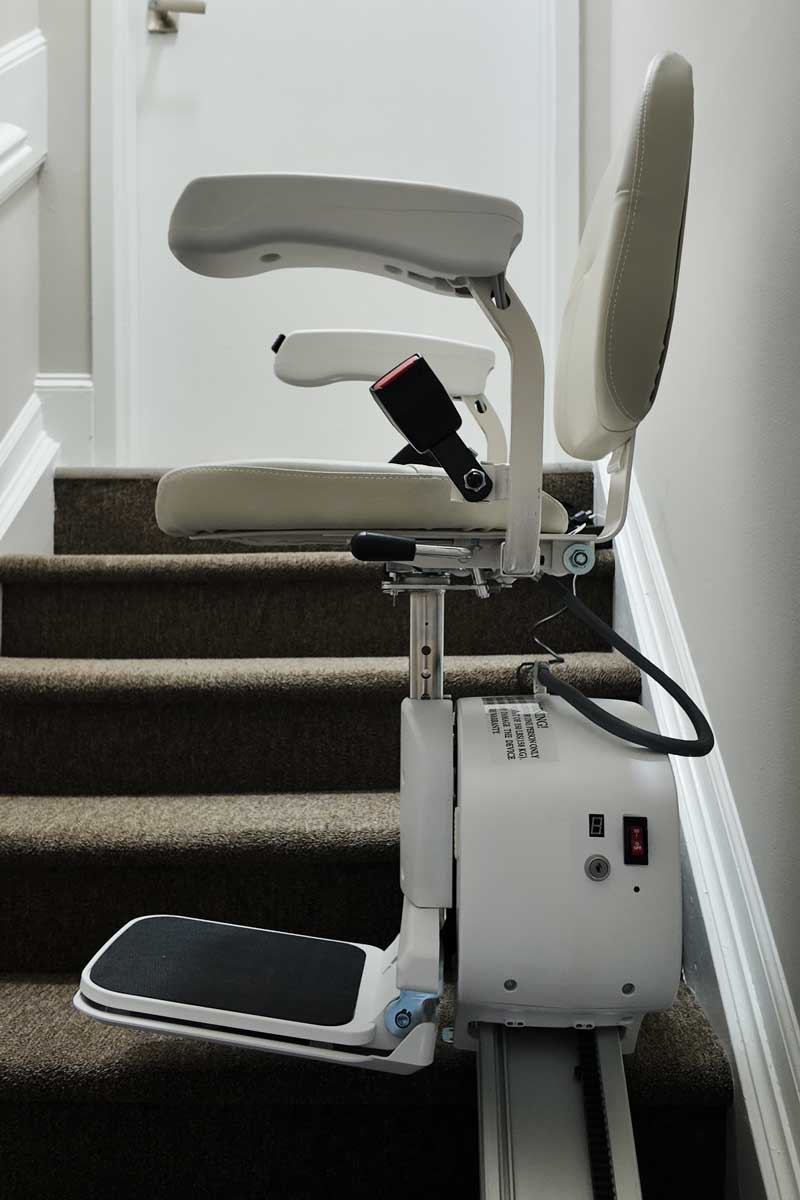

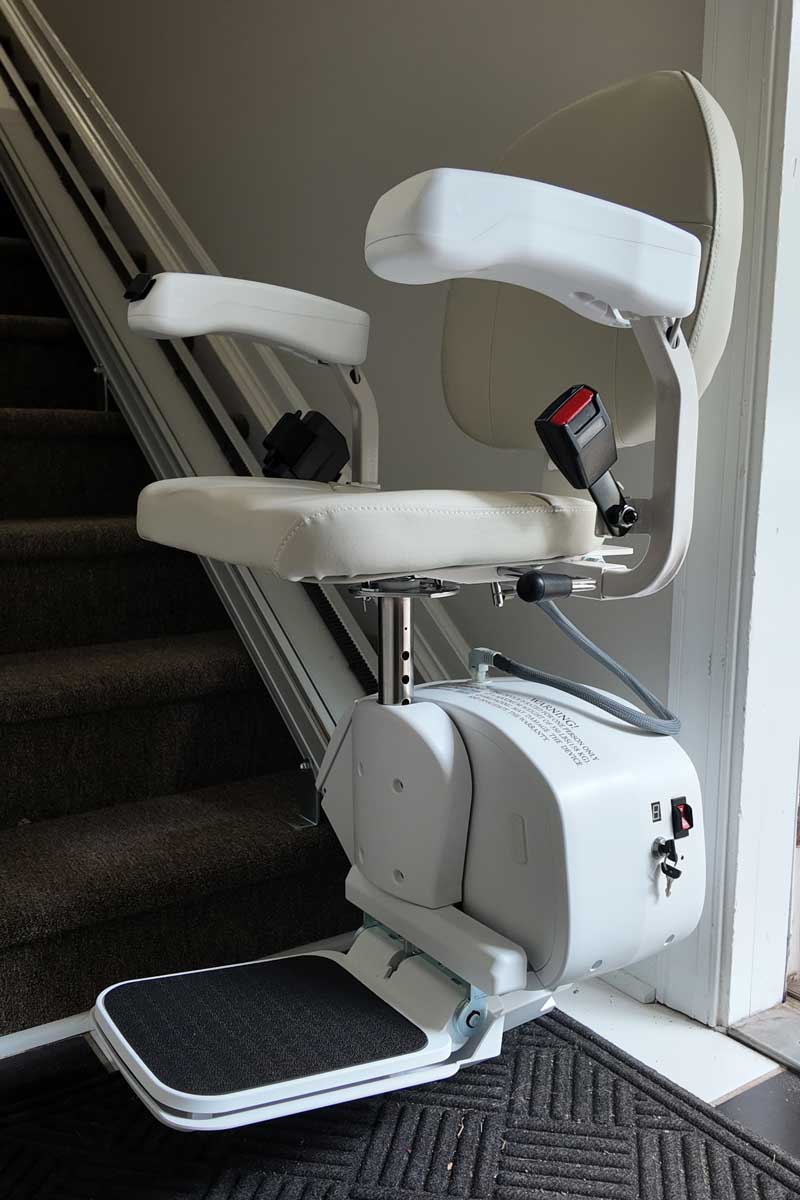

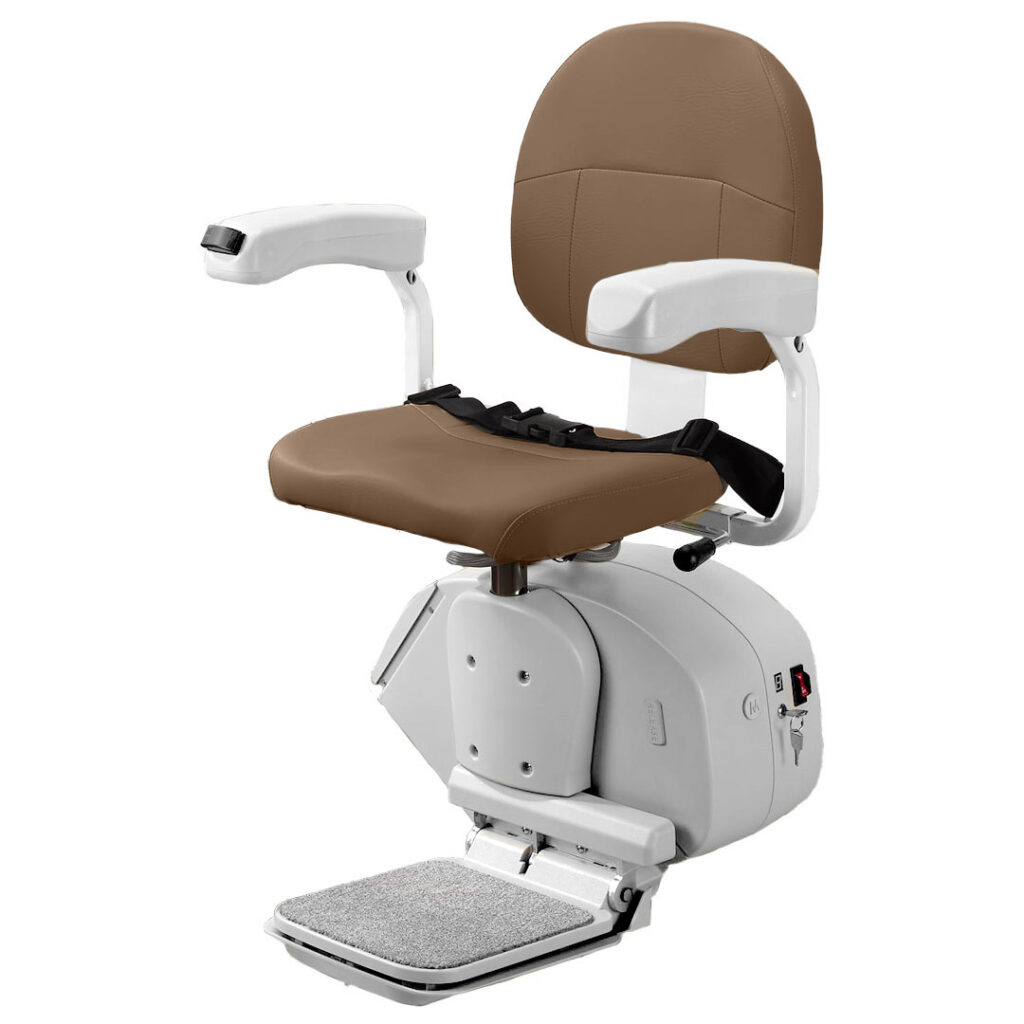

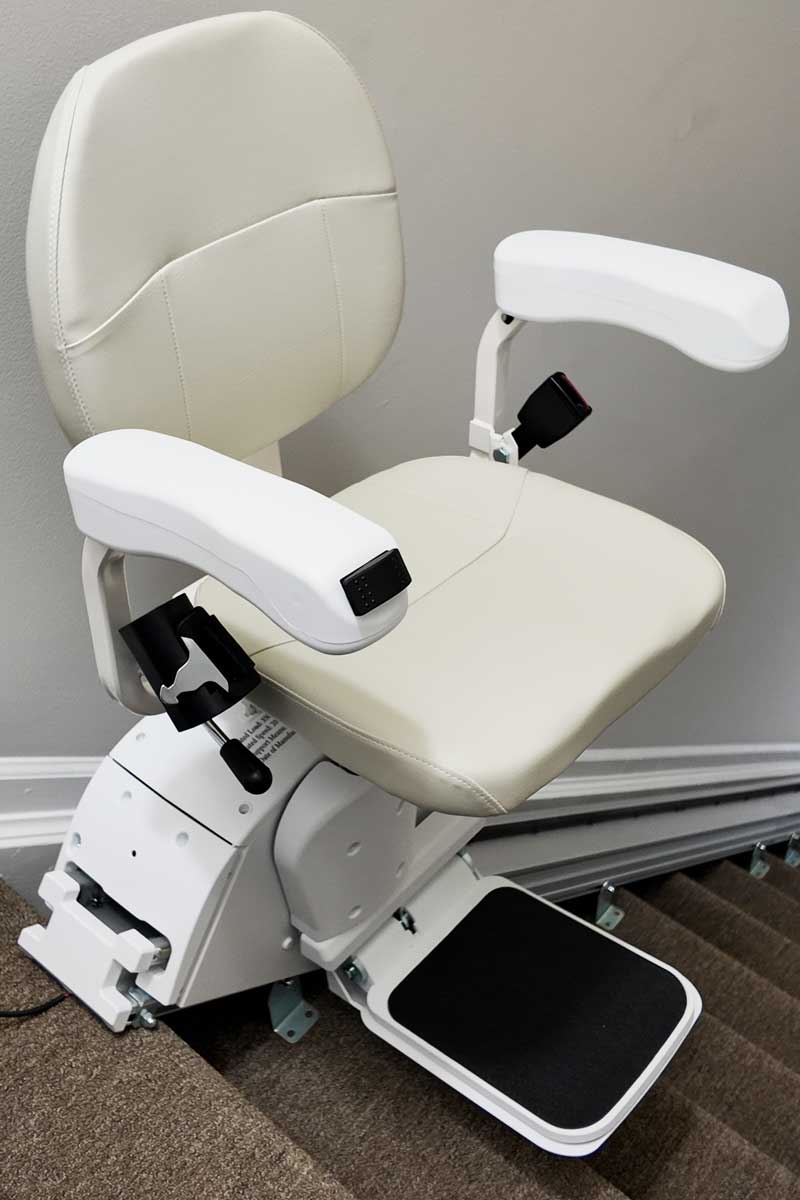

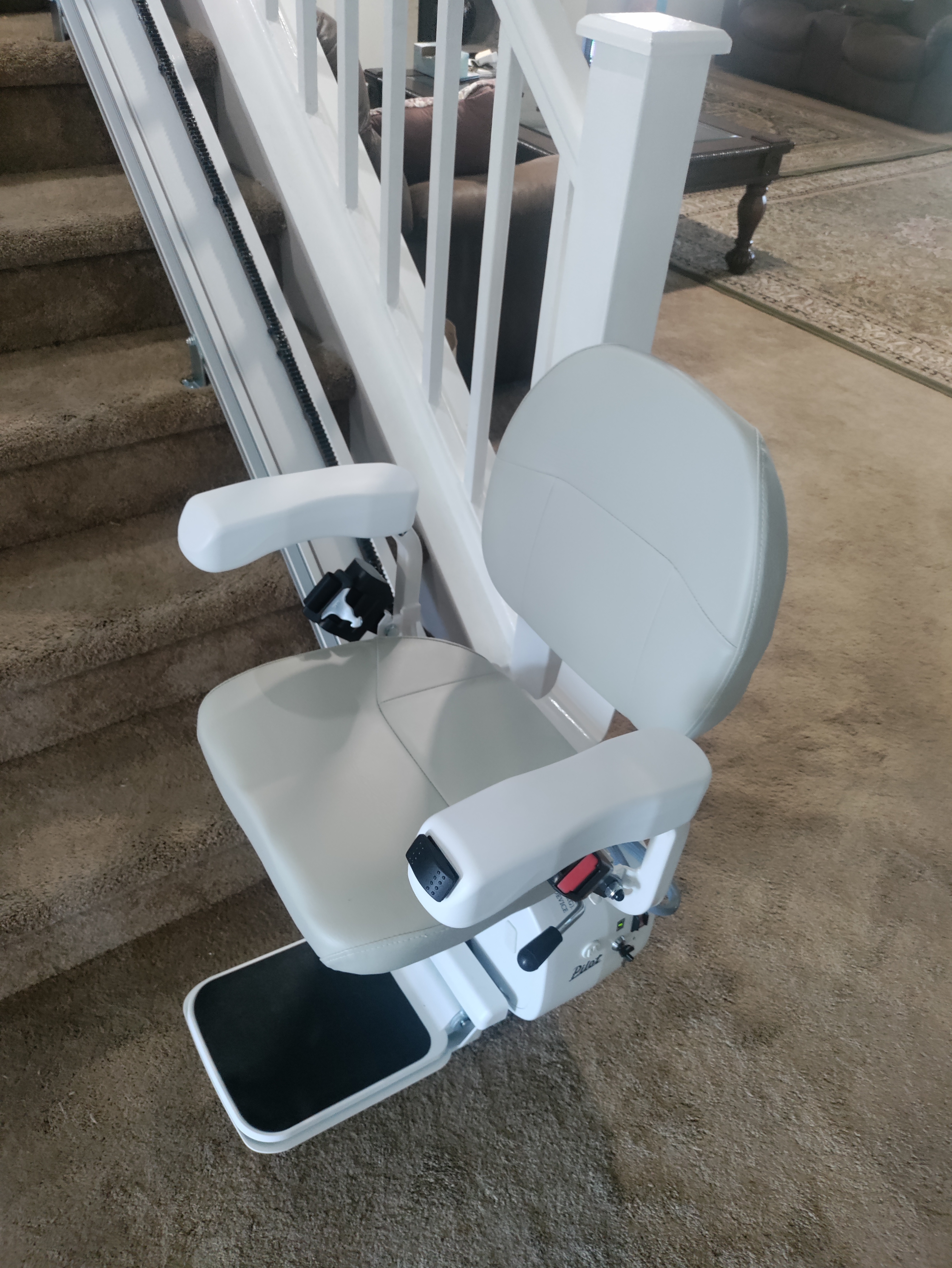

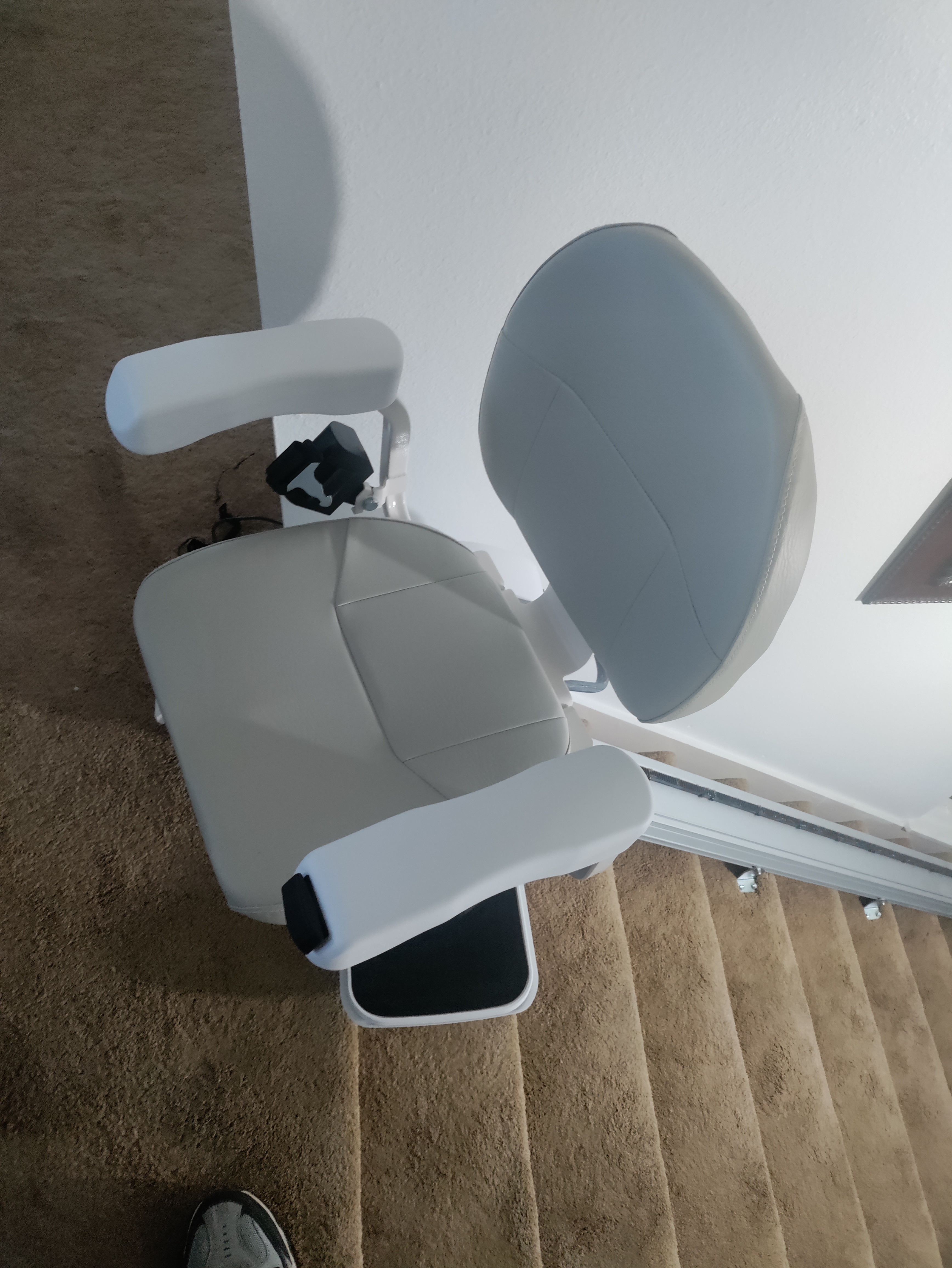

The Crest HD Stair Lift offers exceptional versatility, functionality, an automatic hinged rail, and robust safety. It is a heavy-duty unit with a 350 lb. capacity and its universal design allows left or right-side installation, with adjustable armrest width, seat height, and toggle position. A 2-position swivel seat ensures safe transfers.

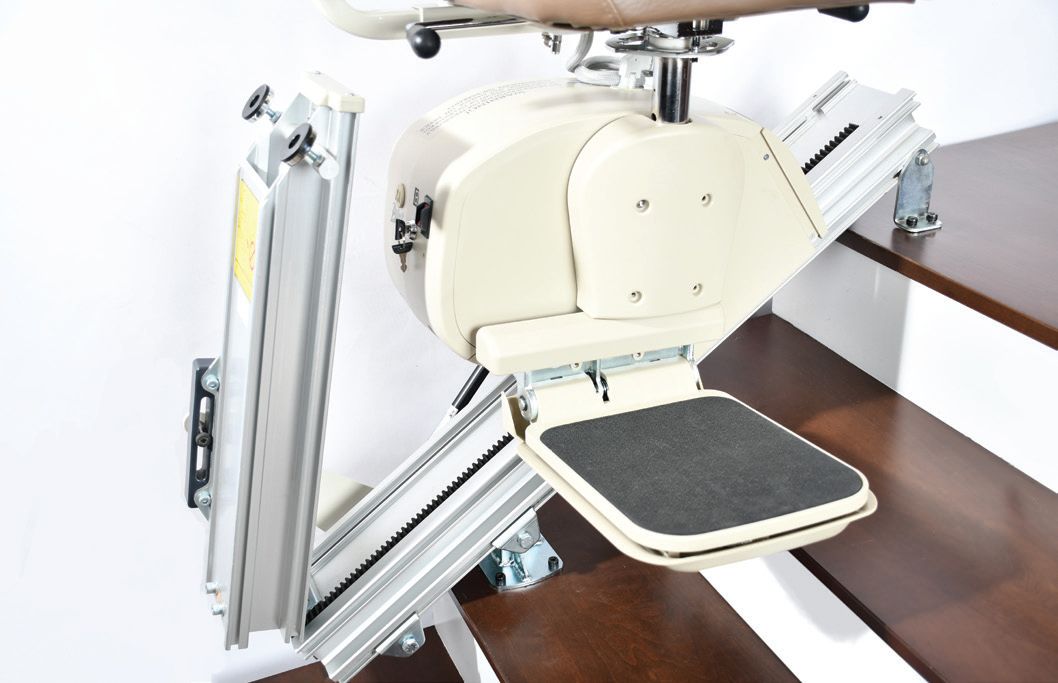

Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Available Upgrades
Stair Lift Orientation (Looking Up the Stairs)
- Right +$0.00
- Left +$0.00
Upholstery Color
- Beige
+$0.00
- Light Brown
+$0.00
- Dark Brown
+$0.00
- Red
+$0.00
- Beige
+$0.00
Track Length
- Standard 16' Of Track +$0.00
- Additional 8' Section of Track +$384.00
- Track Custom Cut to Length +$0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length +$0.00
- Step 2 - Top Landing to Bottom Step +$0.00
- Step 3 - Stair Width +$0.00
- Step 4 - Available Space at Bottom +$0.00
- Step 5 - Height of One Step +$0.00
- Step 6 - Length of One Tread +$0.00
- Step 7 - One Step Front Edge to Front Edge +$0.00
- Step 8 - Available Space at Top +$0.00
Options
- Hinge Rail
+$834.00
- Power Swivel Seat +$1,476.00
- Additional Standard Brackets +$0.00
- 6" Extended Indoor Brackets (each) +$9.00
- 8' Charging Cable Extension +$15.00
- Extended Footplate Kit - 2" +$167.00
- Extended Seat Post Kit - 2" +$42.00
- Hinge Rail
+$834.00
Installation
- Self-Install +$0.00
- Nationwide Installation Service +$599.00
- Double Stair Lift Installation Service - Per Stair Lift +$437.50
- Nationwide Measurement and Installation +$749.00
Installation Special Cases
- Installation In Remote or Limited Access Location +$345.00
- Installation On Concrete, Steel, or Tile Stairs +$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts +$150.00
- Existing Stair Lift Removal +$499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track +$154.00
- Shipping to Alaska or Hawaii (Call for Price) +$0.00
