Crest HD Stair Lift Outdoor

spacer
$2,895.00
Plus Shipping

Add to Cart

Product Specifications

Drive TypeRack and Pinion
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15'
Track MaterialAnodized Aluminum
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorNo
Warranty1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
Track Width6.5"
Call Stations Included2
Swivel Seat Rotation90 Degrees at top landing
Rail Angle, Min25°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo
The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
  • ETL listed A17.5 / B44 - A18.1
  • Heavy duty canvas cover
  • Outdoor powder coating
  • Sealed switches and waterproof connections
  • Rack and pinion drive
  • Interior gear rack
  • 25 to 45 degree angle applications
  • Quick adjustment limit cams
  • Folds to 12.5" from the wall
  • Chassis weight 40 lbs.
  • Track weight for 8' section 36 lbs.
  • Wireless seat control
  • Wireless remote controls for upper and lower landings
  • 15' track standard, additional sections available
  • Chassis mounted auxiliary control switch
  • Obstruction audio beep notification
  • Battery operated system
  • Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
  • Constant pressure controls
  • 3" to 6" horizontal extension at top landing (depending on angle)
  • 90 degree swivel seat assembly at top landing
  • ANODIZED aluminum rail

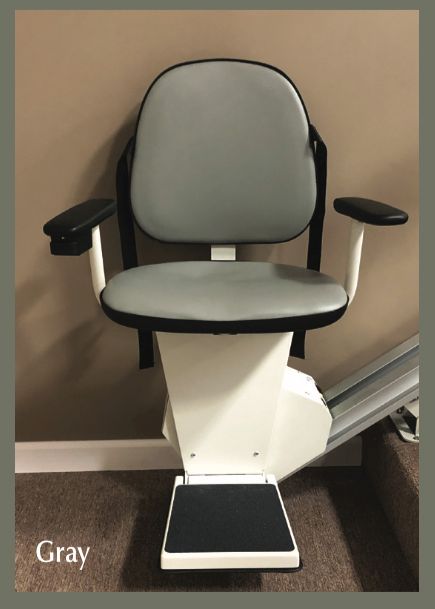

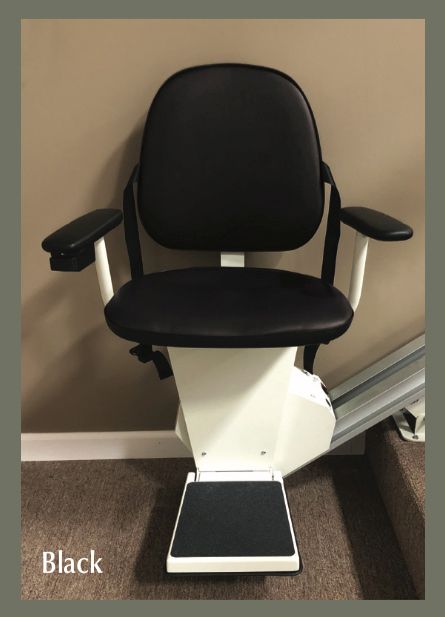

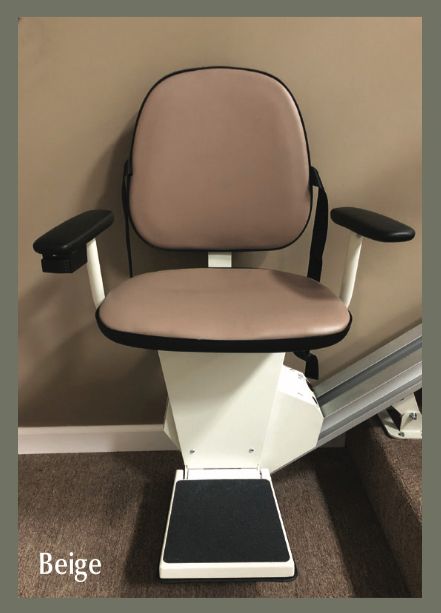

  • Black, Gray, Beige or Brown upholstery
  • Seat belt
  • Folding arm rest
  • Proudly made in the USA!

Available Upgrades

  • Stair Lift Orientation

    • Right   +$0.00   No Image
    • Left   +$0.00   No Image
  • Upholstery Color

    • Black   +$0.00   Black
    • Walnut   +$0.00   Walnut
    • Caramel   +$0.00   Caramel
    • Gray   +$0.00   Gray
  • Seat Width

    • Standard   +$0.00   No Image
    • Arms Extended 2" on Either Side   +$230.00   No Image
  • Chassis / Track Custom Color

    • Chassis Custom Color   +$310.00   No Image
    • RAL Color for Chassis Powder Coat   +$0.00   No Image
    • Track Custom Color   +$462.00   No Image
    • RAL Color for Track Powder Coat   +$0.00   No Image
  • Track Length

    • Standard 15' Of Track   +$0.00   No Image
    • Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)   +$55.00   No Image
  • Stair Lift Measurements According to Measurement Guide

    • Step 1 - Total Staircase Length   +$0.00   No Image
    • Step 2 - Top Landing to Bottom Step   +$0.00   No Image
    • Step 3 - Stair Width   +$0.00   No Image
    • Step 4 - Available Space at Bottom   +$0.00   No Image
    • Step 5 - Height of One Step   +$0.00   No Image
    • Step 6 - Length of One Tread   +$0.00   No Image
    • Step 7 - One Step Front Edge to Front Edge   +$0.00   No Image
    • Step 8 - Available Space at Top   +$0.00   No Image
  • Options

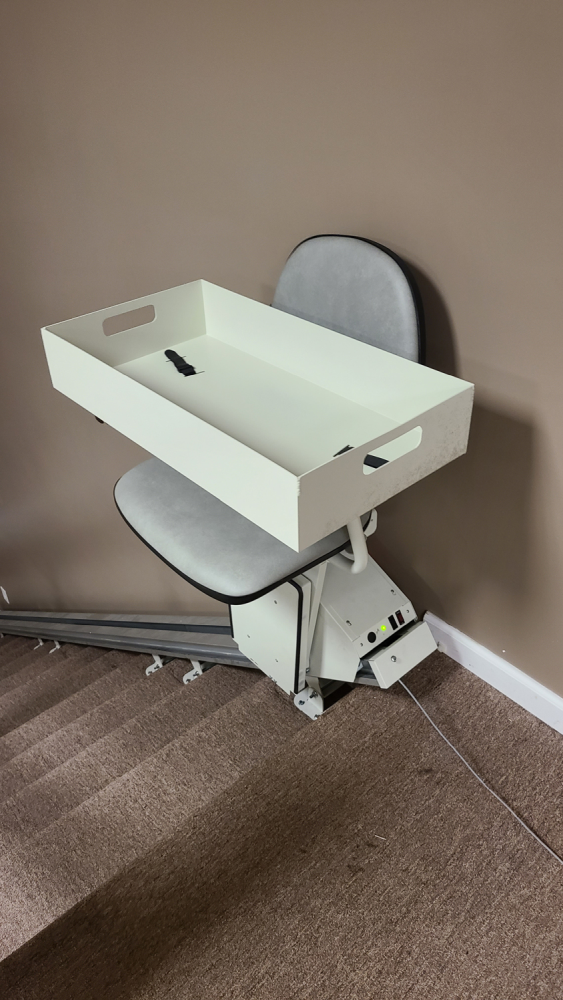

    • Cargo Tray Add-On   +$230.00   Cargo Tray Add-On
    • Wall Mounted Call/Send Controls (set)   +$154.00   No Image
    • Additional Key Fob Remote   +$77.00   No Image
    • Additional Standard Brackets   +$38.00   No Image
    • Tall Brackets   +$39.00   No Image
    • Extra Splice Bar   +$23.00   No Image
    • Key Switch   +$77.00   No Image
    • Lockable Battery Disconnect   +$77.00   No Image
    • Bluetooth Controller   +$124.00   No Image
    • Solar Power Unit   +$1,495.00   Crest HD Solar Power Unit
  • Installation

    • Self-Install   +$0.00   No Image
    • Nationwide Installation Service   +$599.00   No Image
    • Double Stair Lift Installation Service - Per Stair Lift   +$437.50   No Image
    • Nationwide Measurement and Installation   +$749.00   No Image
    • Stair Lift Removal and Disposal   +$499.00   No Image
  • Installation Special Cases

    • Installation In Remote or Limited Access Location   +$345.00   No Image
    • Installation On Concrete, Steel, or Tile Stairs   +$300.00   No Image
  • Shipping

    • Additional Shipping Charge for Unit with More Than 16' of Track   +$154.00   No Image
    • Shipping to Alaska or Hawaii (Call for Price)   +$0.00   No Image
