QuickServe II Dumbwaiter
click to enlarge

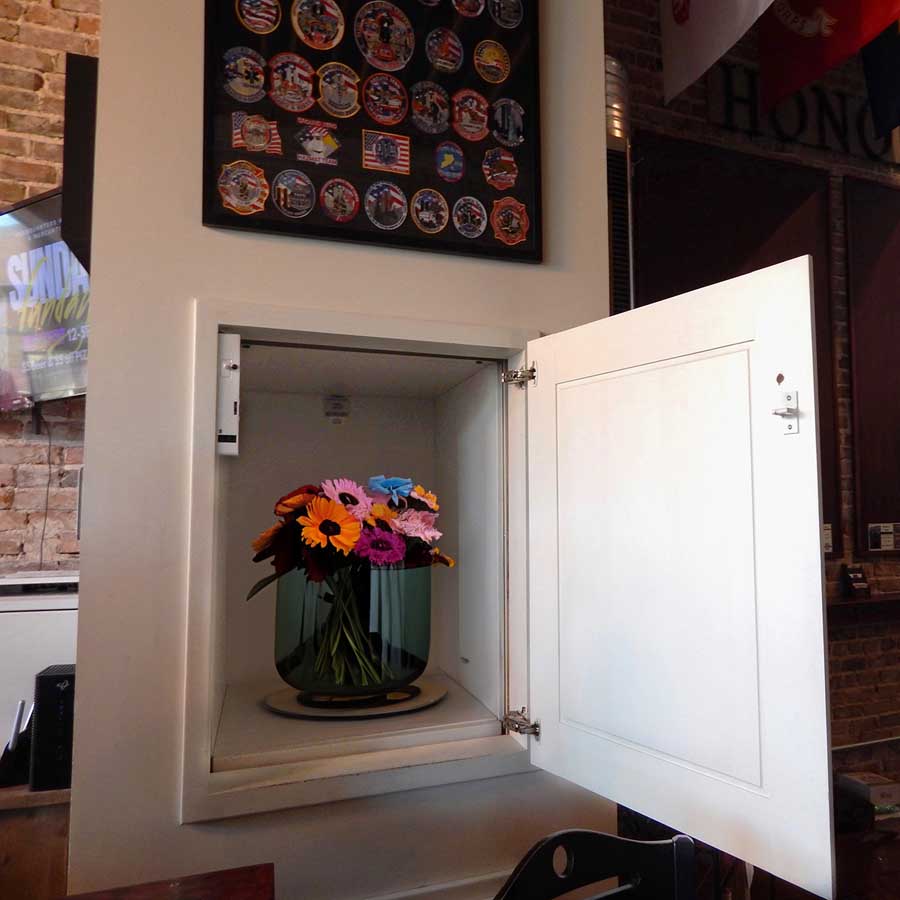

  • Inside a Shop

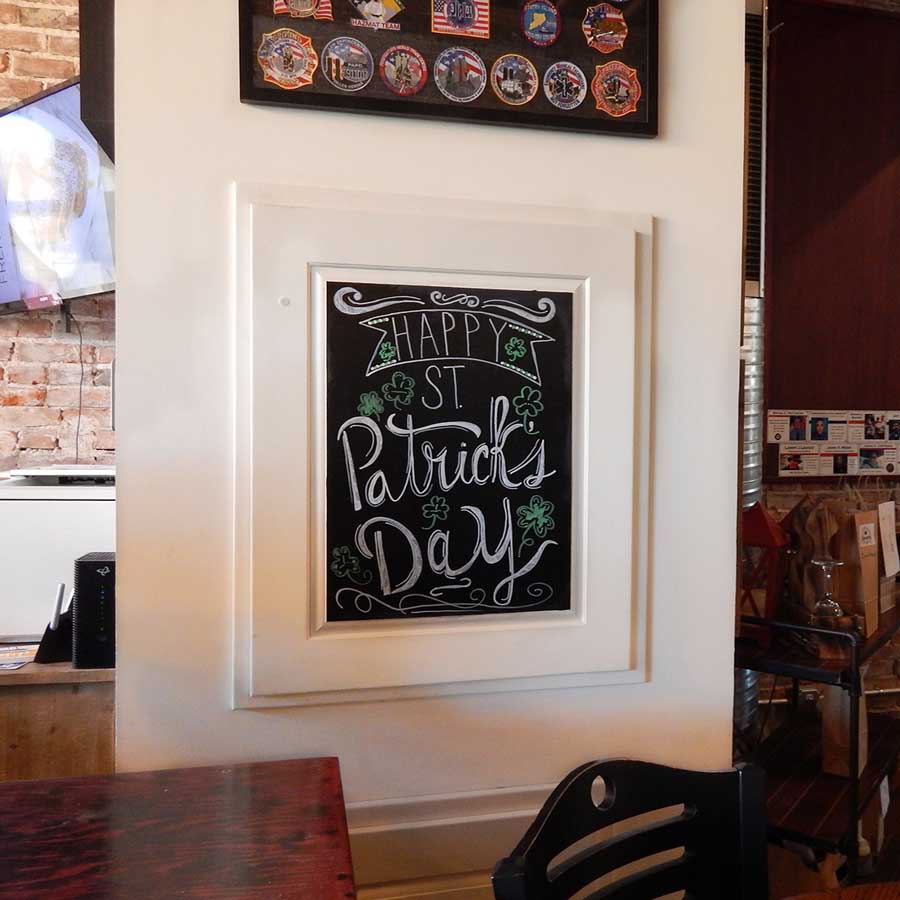

  • Decorated Door

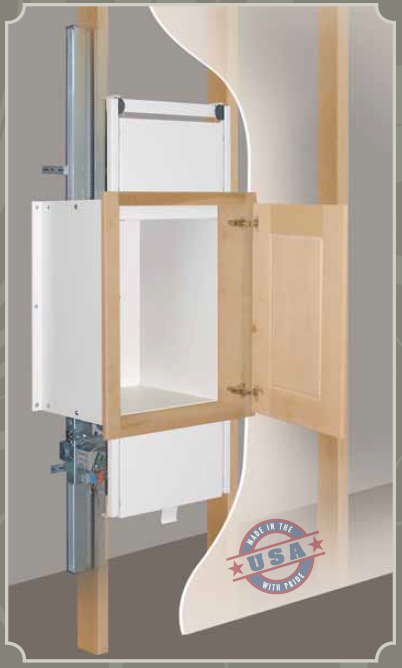

  • Cutaway

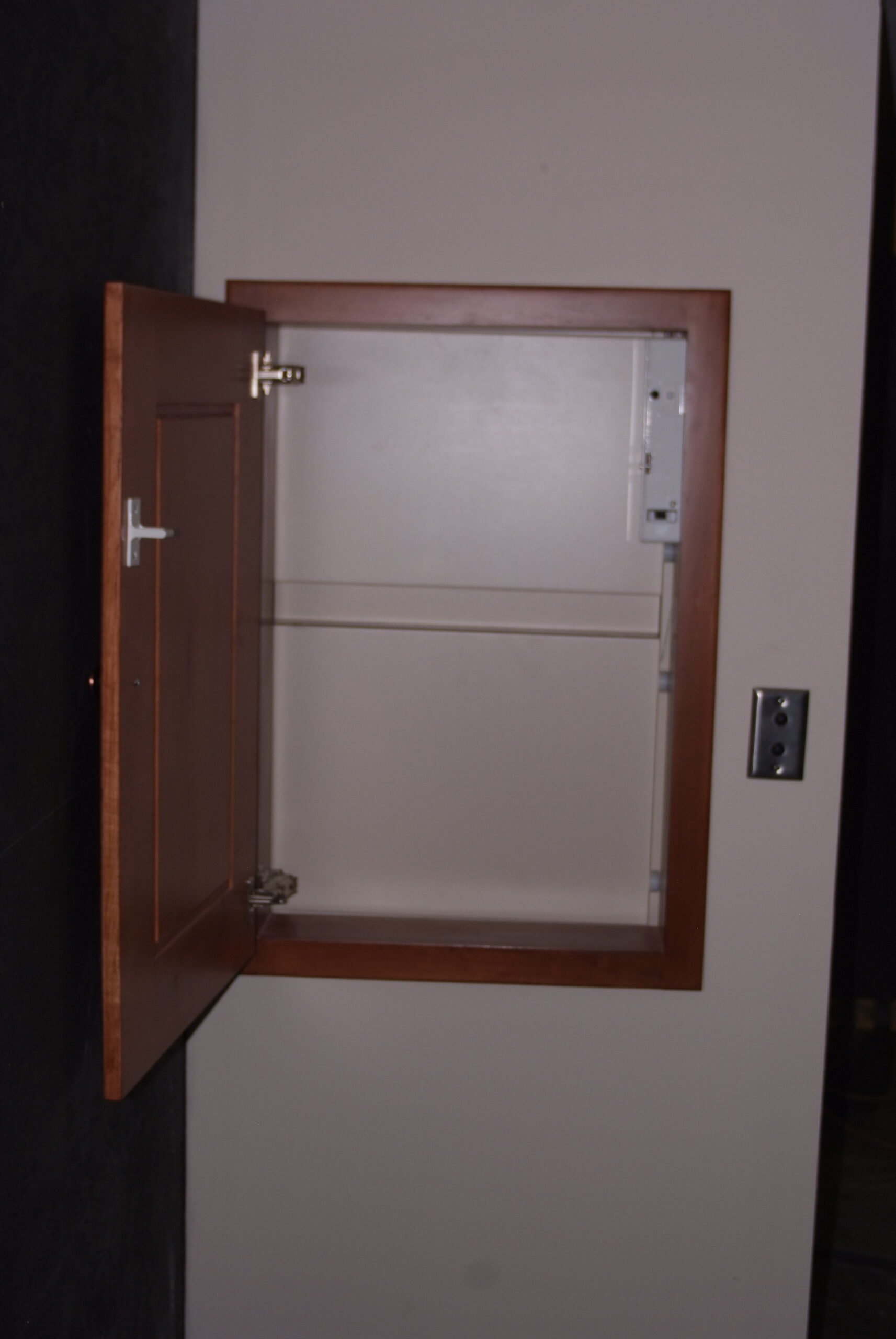

  • Shelf Inside

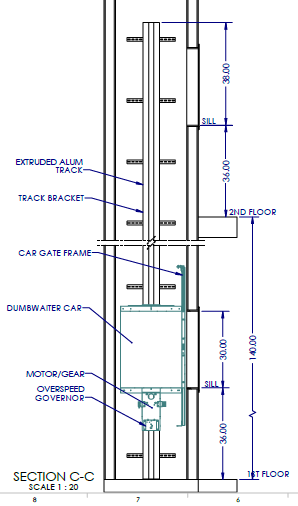

  • Dimensions
$6,279.00
Plus Shipping

Add to Cart

Product Specifications

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
  • Rack and pinion drive
  • No slack cable lock-ups
  • Battery operated
  • Fast and easy installation – plug and play
  • Aluminum rail instead of steel T-rail
  • No separate machine room required
  • No remote mounted controller
  • On board diagnostic troubleshooting LED light
  • 20" Wide x 20" Deep x 30" High – 275 lbs capacity
  • 24" Wide x 24" Deep x 30" High – 275 lbs capacity
  • 30" Wide x 30" Deep x 36" High – 275 lbs capacity
  • Optional stainless steel car
  • Warranty 5 years on motor and gear, and 2 years on all other parts
Product Video

Available Upgrades

  • Stops

    • 2 Stops   +$0.00
    • 3 Stops   +$1,143.00
    • 4 Stops   +$1,993.00

  • Car Door Placement (in reference to the track)

    • Front Entry   +$0.00   Front Entry
    • Left Side Entry   +$0.00   Left Side Entry
    • Right Side Entry   +$0.00   Right Side Entry
    • Pass Through   +$1,072.00   Pass Through
    • 90 Degree Left Side   +$1,358.00   90 Degree Left Side
    • 90 Degree Right Side   +$1,358.00   90 Degree Right Side

  • Car Dimensions

    • 20"W x 20"D x 30"H (200 LB Capacity)   +$0.00
    • 24"W x 24"D x 30"H (200 LB Capacity)   +$715.00
    • 30"W x 30" D x 36"H (275 LB Capacity)   +$1,143.00
    • Custom Cab Size   +$2,572.00

  • Car Material

    • Standard Coated Steel Panels (any size)   +$0.00
    • Stainless Steel Panels Must Match Car Dimensions Above   +$0.00
    • Stainless Steel 20"W x 20"D x 30"H   +$2,286.00
    • Stainless Steel 24"W x 24"D x 30"H   +$3,143.00
    • Stainless Steel 30"W x 30" D x 36"H   +$4,286.00
    • Stainless Steel Custom Size   +$4,286.00

  • Car Shelf

    • Up to 4 Total   +$0.00
    • No Optional Car Shelf   +$0.00
    • Adjustable Wire Rack Car Shelf   +$143.00
    • Sliding Shelf   +$143.00
    • Metal Powder Coated Shelf   +$279.00
    • Stainless Steel Car Shelf   +$643.00

  • Call/Send Controls

    • 1 RF Call Station Per Stop   +$0.00
    • Key Lock on RF Call Station   +$72.00
    • Car Here Indicator on RF Call Station   +$143.00

  • First Landing Door Locations

    • Front   +$0.00
    • Rear   +$0.00
    • Left Side   +$0.00
    • Right Side   +$0.00

  • Second Landing Door Locations

    • Front   +$0.00
    • Rear   +$0.00
    • Left Side   +$0.00
    • Right Side   +$0.00

  • Third Landing Door Locations (if 3 or 4 Stop)

    • None   +$0.00
    • Front   +$0.00
    • Rear   +$0.00
    • Left Side   +$0.00
    • Right Side   +$0.00

  • Fourth Landing Door Locations (if 4 Stop)

    • None   +$0.00
    • Front   +$0.00
    • Rear   +$0.00
    • Left Side   +$0.00
    • Right Side   +$0.00

  • First Landing Hoistway Door Swing

    • Door Hinged on the Right   +$0.00
    • Door Hinged on the Left   +$0.00

  • Second Landing Hoistway Door Swing

    • Door Hinged on the Right   +$0.00
    • Door Hinged on the Left   +$0.00

  • Third Landing Hoistway Door Swing (if 3 or 4 Stop)

    • No Third Stop   +$0.00
    • Door Hinged on the Right   +$0.00
    • Door Hinged on the Left   +$0.00

  • Fourth Landing Hoistway Door Swing (if 4 Stop)

    • No Fourth Stop   +$0.00
    • Door Hinged on the Right   +$0.00
    • Door Hinged on the Left   +$0.00

  • Additional Options

    • Automatic Car Lighting   +$136.00
    • Automatic Homing   +$429.00
    • Select Landing for Automatic Homing (if selected above, bottom is #1)   +$0.00

  • RDI Interlock

    • RDI Interlocks (1 per Stop Included)   +$0.00
    • NOTE: if any stop has more than one access opening, order additional Interlocks   +$0.00
    • Additional RDI Interlocks   +$429.00
    • Upgrade RDI to Commercial Interlock (per Interlock)   +$358.00

  • Track

    • 10' of Extruded Aluminum Track Included   +$0.00
    • Extra Track Per Foot (Over 10')   +$72.00

  • Hoistway/Access Doors

    • No Optional Hoistway Doors   +$0.00
    • Unfinished Poplar Hoistway Door   +$500.00
    • Unfinished Maple Hoistway Door   +$715.00
    • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Poplar   +$1,072.00
    • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Maple   +$1,286.00

  • Dumbwaiter Shipping

    • Shipping to Nearest Freight Terminal/ Loading Dock In or Near Your Zip Code (lower 48)   +$0.00
    • Call for Price to ship to Alaska or Hawaii   +$0.00

  • Optional Fire Proof Landing and Machine Access Doors

    • Stainless Steel (#4 finish) Swing Door - 1.5 Hour Fire Rated   +$0.00
    • 20" W x 30" H - Right Hand   +$1,453.00
    • 20" W x 30" H - Left Hand   +$1,453.00
    • 24" W x 30" H - Right Hand   +$1,453.00
    • 24" W x 30" H - Left Hand   +$1,453.00
    • 30" W x 36" H - Right Hand   +$1,617.00
    • 30" W x 36" H - Left Hand   +$1,617.00
    • Machine Access Door   +$0.00
    • 18" W x 18" H Stainless Steel - Right Hand   +$1,000.00
    • 18" W x 18" H Stainless Steel - Left Hand   +$1,000.00

  • Mounting Surface For Optional Fire Proof Doors

    • Dry Wall Mounted   +$0.00
    • Masonry Wall Mounted   +$0.00

  • Crating and Shipping Preparation for Optional Fire Proof Doors

    • No Optional Fire Proof Doors Ordered   +$0.00
    • Up to 3 Doors   +$462.00
    • Additional (per door) for Over 3 Doors (must select "Up to 3 Doors" also)   +$154.00

  • Freight for Optional Fire Proof Doors

    • No Optional Fire Proof Doors Ordered   +$0.00
    • Freight for Up to 3 Doors   +$1,001.00
    • Freight for 4 Doors   +$1,077.00
    • Freight for 5 Doors   +$1,154.00
    • Freight for 6 or More Doors (call for quote)   +$0.00
    • Call for Price to Ship Outside the Contiguous 48 US States   +$0.00

  • Delivery Option for Optional Fire Proof Doors

    • Liftgate Service (if needed for doors at the delivery point)   +$0.00
