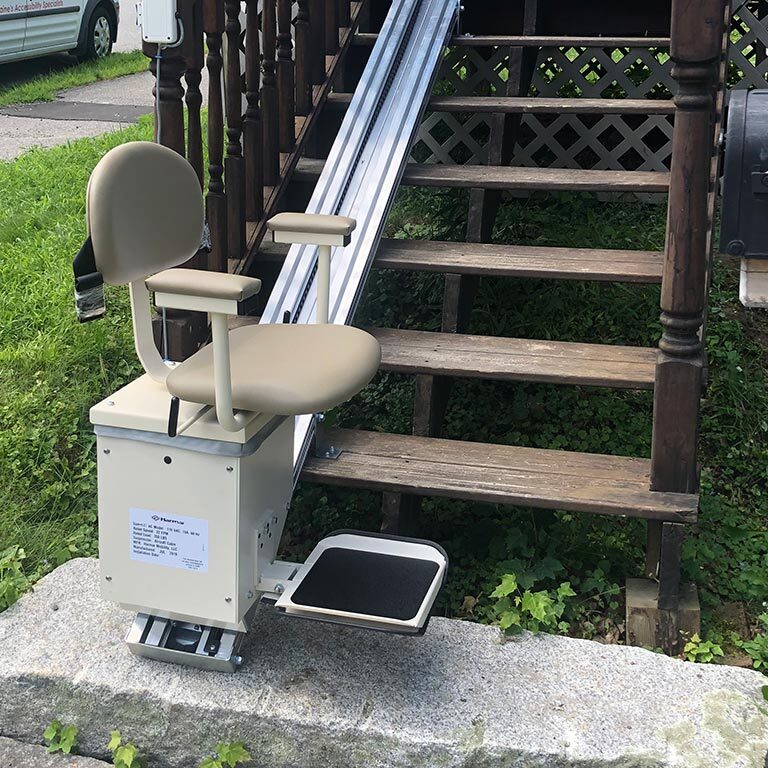

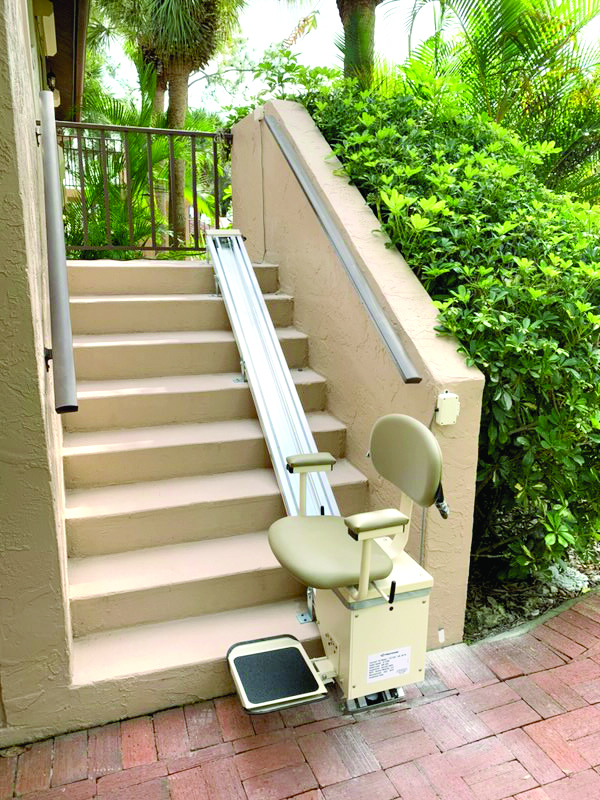

Harmar Summit AC Straight Outdoor Stair Lift

spacer
$3,525.00
Plus Shipping

Add to Cart

Product Specifications

Drive TypeCable
Battery PoweredNo
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional25'
Track MaterialAluminum
Seat Width17.5"
Seat Depth14"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, Non-Folded24.5"
Unit Footprint, Folded14"
Track Footprint12"
Track Width8"
Call Stations IncludedWired
Rail Angle, Min30°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.

Features:

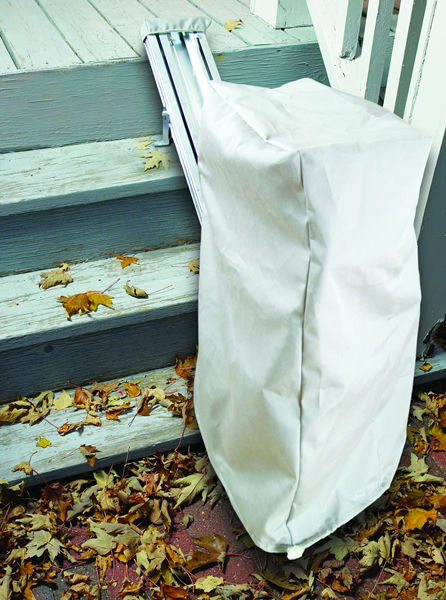

  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs

Available Upgrades

  • Vinyl Seat Color

    • Light Almond   +$0.00   Light Almond Seat - Summit Stair Lift
  • Seat Size

    • 17.5" W   +$0.00   No Image
  • Options

    • Keylock Package - Keyed Base & Keyed Call-Send Controls   +$350.00   No Image
    • Keyed Base Only   +$179.00   No Image
    • Grocery Basket   +$229.00   No Image
    • Wireless Call/Send Controls For Outdoors   +$443.00   No Image
  • Track Length (15' is Standard *)

    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.   +$0.00   No Image
    • 15' of track * (180")   +$0.00   No Image
    • Custom Cut track Less Than 15'   +$115.00   No Image
    • Track length 16' and over reduces weight capacity to 250 pounds   +$0.00   No Image
    • Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity   +$272.00   No Image
    • Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity   +$443.00   No Image
    • 20' of track Uncut 250 lb Capacity   +$193.00   No Image
    • 25' of track Uncut 250 lb Capacity   +$443.00   No Image
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left   +$0.00   No Image
    • The stair lift will be on the right   +$0.00   No Image
  • Installation

    • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.   +$0.00   No Image
    • Self Installation   +$0.00   No Image
    • Nationwide Installation (Not available in Oregon or Washington)   +$575.00   No Image
    • Nationwide Installation and Measurement Service (Not available in Oregon or Washington)   +$725.00   No Image
    • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)   +$875.00   No Image
    • Stair Lift Removal and Disposal (Not available in Oregon or Washington)   +$460.00   No Image
  • Installation Permit

    • License / Permit / Inspection   +$425.00   No Image
    • Permit and Inspection   +$350.00   No Image
    • Permit (Required in Kentucky for EACH item being installed)   +$87.50   No Image
    • Permit & Inspection (Required in Georgia for EACH item being installed)   +$250.00   No Image
    • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)   +$300.00   No Image
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs   +$300.00   No Image
    • Installation In Remote or Limited Access Location   +$285.00   No Image
  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   +$0.00   No Image
    • 1. Overall length   +$0.00   No Image
    • 2. Top stair to bottom stair   +$0.00   No Image
    • 3. Staircase width   +$0.00   No Image
    • 4. Bottom clearance   +$0.00   No Image
    • 5. Rise of one step   +$0.00   No Image
    • 6. Tread of one step   +$0.00   No Image
    • 7. Diagonal   +$0.00   No Image
    • 8. Door at the top   +$0.00   No Image
    • Need help measuring? Print out the "How to Measure" worksheet.   +$0.00   No Image
