AmeriGlide Rave Stair Lift | Stair Lifts 101

spacer
$2,149.00
Plus Shipping

Add to Cart

Product Specifications

Drive Type Rack & Pinion
Battery Powered Yes
Self Installable Yes
Basic Installation Included No
Standard Capacity 350 lb
Max Track Length, Standard 16'
Max Track Length, Optional 32'
Track Material Aluminum
Swivel Seat Yes
Flip-Up Seat Yes
Flip-Up Armrests Yes
Constant Pressure Controls Yes
Footrest Safety Sensor Yes
Unit Footprint, Non-Folded 22.5"
Unit Footprint, Folded 10"
Track Footprint 7"
Warranty A 5-year period on all component parts of the lift, and a 10-year period on the motor and gear.
Track Width 4.875"
Call Stations Included Yes - Wireless

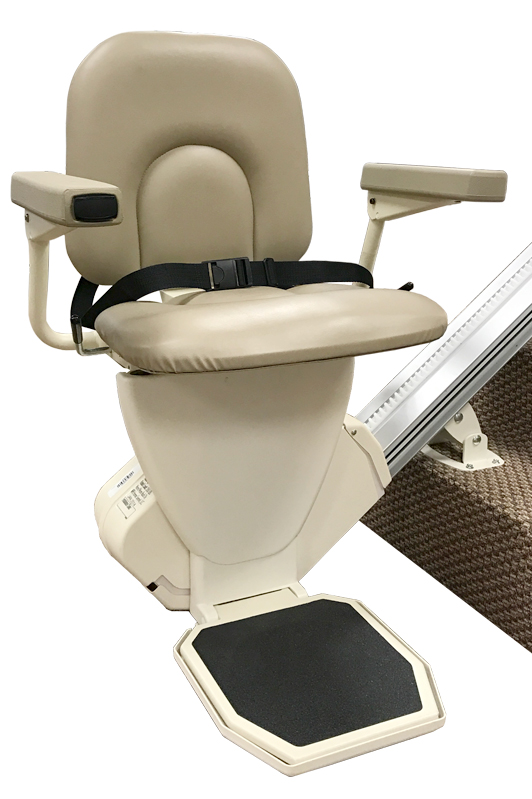

If you have a narrow staircase and installing a standard stair lift just doesn't seem practical, the Rave Stair Lift by AmeriGlide is your answer. The Rave measures only about 11 inches from the wall when the seat is folded up, so other people that don't need a lift can easily use the stairs. All of the standard safety elements you expect from AmeriGlide are on the Rave, but on a much slimmer design! Weight capacity isn't compromised on this smaller design either, with a max limit of 350 pounds. Call today to speak with an expert. Stair Lifts 101 always gives you the lowest price on mobility equipment and the Rave by AmeriGlide is no exception.

Available Upgrades

  • Seat Style

    • Soft Vinyl Seat - Taupe  +$0.00  No Image
  • Track Length

    • Up to 16' of track  +$0.00  No Image
    • Extra Track, Per Foot, Up To 16' Extra  +$50.00  No Image
  • Options

    • Seat Belt  +$0.00  No Image
  • Call Stations

    • Top & Bottom Call-Send Stations  +$0.00  No Image
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left  +$0.00  No Image
    • The stair lift will be on the right  +$0.00  No Image
  • Installation

    • Self Installation  +$0.00  No Image
    • Nationwide Installation  +$575.00  Stair Lift Installation Service
    • Nationwide Installation and Measurement Service  +$725.00  Stair Lift Installation and Measurement Services
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs  +$300.00  No Image
    • Installation In Remote or Limited Access Location  +$285.00  No Image
  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.  +$0.00  No Image
    • 1. Overall length  +$0.00  No Image
    • 2. Top stair to bottom stair  +$0.00  No Image
    • 3. Staircase width  +$0.00  No Image
    • 4. Bottom clearance  +$0.00  No Image
    • 5. Rise of one step  +$0.00  No Image
    • 6. Tread of one step  +$0.00  No Image
    • 7. Diagonal  +$0.00  No Image
    • 8. Door at the top  +$0.00  No Image
    • Need help measuring? Print out the "How to Measure" worksheet.  +$0.00  No Image
